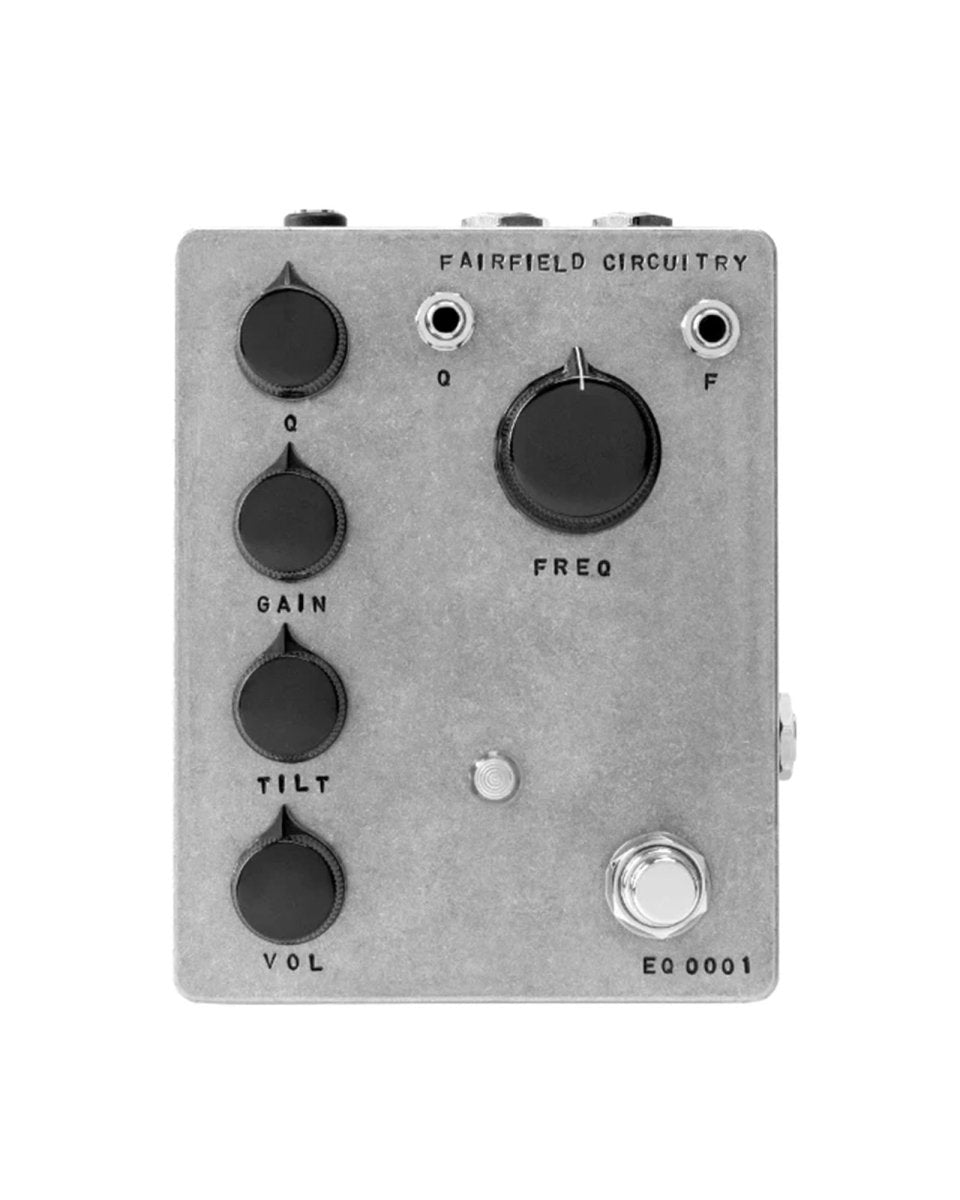

    Fairfield Circuitry Long Life Parametric EQ FX Pedal

    *This is a Special Order item that we order quickly and directly from our suppliers after your purchase and ship to you within 4-10 days.*

    The Long Life FX pedal from Fairfield Circuitry is a a one-band parametric EQ with some super cool additions.

    Like all Fairfield Circuitry pedals, this is housed in a rugged and bare enclosure, with their signature stamped markings.  A true work of class.



    The Details
    • Special Order Item
    • Expected to ship within 4-10 days
    • Effect: EQ Filter
    • Made In Canada
    • w/tilt and CV
    • Shelving filter, from low-pass to high-pass
    • CV inputs for resonance (Q) and frequency (F)
    • V/octave scaling synthesizer interface
    • Fully variable Q goes well into tasty sweet self-oscillations
    • Soft clip zener zesty mordant
    • Expression pedal input controls center frequency
    • True bypass
    • 2 years manufacturers warranty
    • 9V DC centre negative
    • Protected against reversed polarity conditions
    Shipping

    Shipping

    • Free UK shipping from orders of £200 or more
    • Orders despatched within 1-2 working days
    • Always tracked worldwide shipping
    • Plastic free packaging as standard

    Returns

    30 day peace of mind return policy, but please read our terms and conditions, returns and refunds policy before placing an order.

    What Do Fairfield Circuitry Say?

    A state-variable filter with wide range and application. Versatile. Combining tilt and notch/boost equalization around a 2nd-order (-12dB/octave) state-variable core.

    Very much a one-band parametric equalizer with gritty extras.

    Uses

    • Flexible tone stack allowing for careful tuning of desired response
    • Stacking before/after other pedals for dramatic emphasis/deemphasis
    • With an expression pedal for wah-type debaucherie
    • Standalone channel strip EQ for outboard processing
    • Integrated with a modular synthesizer mindset, can act as a VCF and a VCO
    • With external CV control such as sequencers and keyboards
    Controls

    FREQ:

    Corner frequency of filter. summed with CV F input and expression input. Frequency range without external control 8HZ - 6kHZ

    Q

    Quality factor or resonance control . Before noon for softer equalisation. Aggressive past noon. self oscillates past 3 0'clock. summed with CV Q input.

    GAIN

    Negative and positive gain of bandpass filter section allows for notch or boost of selected frequency (FREQ) .

    TILT

    Frequency response can be tilted around the center frequency. At one extreme, a low-pass response; at the other, high-pass. At noon, the response is flat. In between these points , various degrees of flat. In between these points, various degrees of shelving.

    VOL

    unity gain is around 2 0'clock for a flat frequency response.
