Vahlbruch Pipeline v2 Vintage Spring Reverb Emulation FX Pedal [Used]

£129.99

Only 1 in stock

Worldwide Shipping
No-Fuss Returns
Earn Rewards
Free Shipping Over £100
100% Vegan

*This is a Used Pedal in our Grade 4 - Excellent

The Pipeline v2 from Vahlbruch is a hand-made reverb pedal reproducing the legendary and beloved spring reverb sound known from vintage tube amps. In a unique circuit it combines the particular advantages of analog and digital signal processing, resulting in a warm, deep and lush sounding reverb pedal with intuitive handling and superior signal to noise ratio.

This is a 'used' pedal, in our Grade 4 excellent condition, it's been well loved and looked after, but doesn't come with the original box, candy or manual, and does have a patch of velcro already on the back.

The Details

USED Pedal
Grade 4 - Excellent
Effect: Reverb
NO Box / NO manual
v2

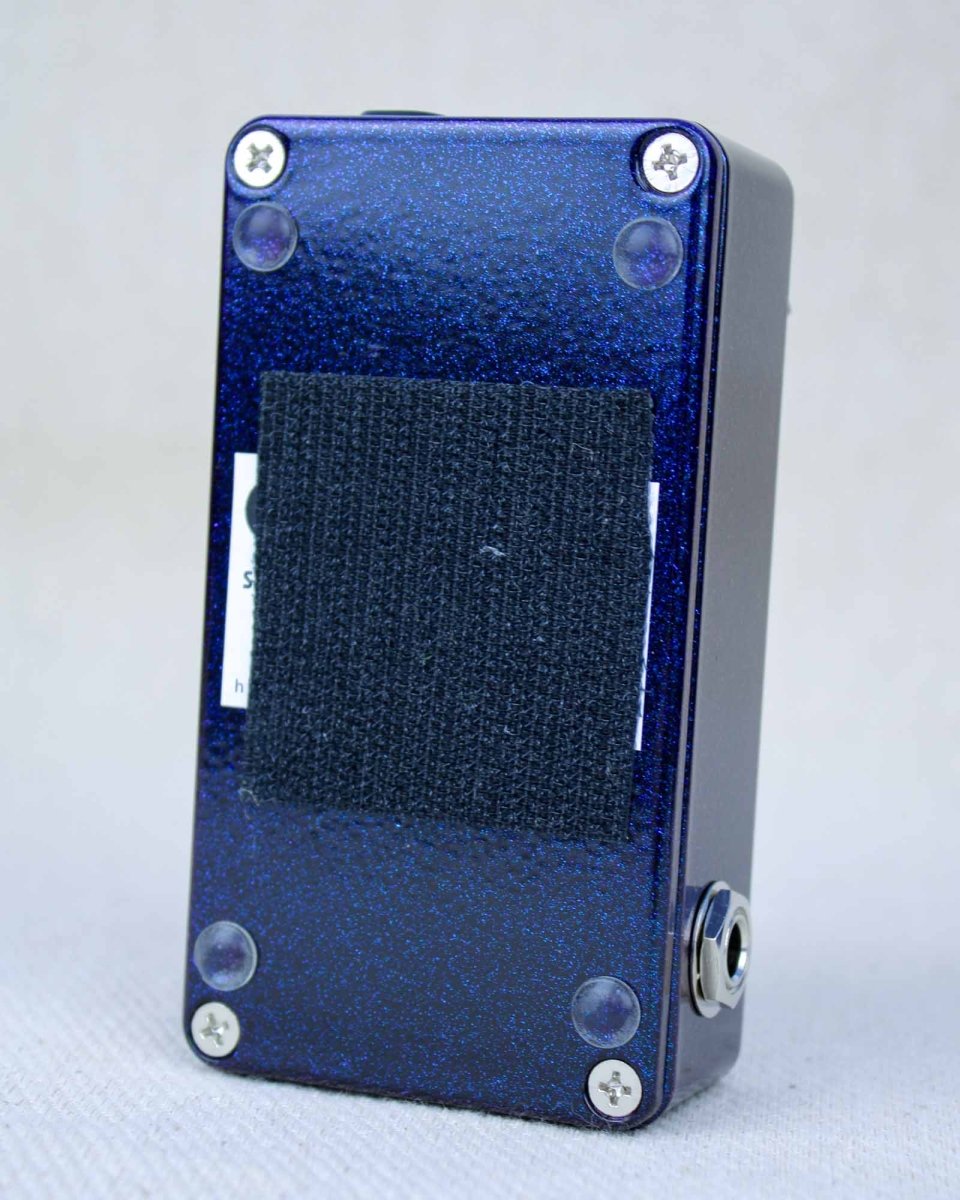

Patch of velcro on the back
Sprint reverb emulation
Warm, deep and lush sounding reverb
Alter the number and length of the simulated springs
MagTraB switching technology
Input impedance: 1.0M Ohms
Output impedance: 100 Ohms
This pedal requires an external regulated 9V power supply (not included)
Polarity: postive@ring / negative@tip
Current consumption: 90mA
Dimensions: 112mm x 70mm x 48mm
Weight: 300g
Handmade in Germany

Used Grading

All used items have been fully checked here at Pedal Jungle and are in a fully working order. The grading represents the cosmetic condition of the item, not the usability.

5– The item is in “like new” mint condition with no discernible cosmetic wear, and no signs of velcro. The original box and any accessories will also be present.

4– The item is in excellent condition but may show some very small signs of use. This could include small scuff, scratch or dent, or a light tarnishing to the enclosure, or small signs of velcro. This may or may not include the original box and accessories.

3– The item is in good condition but will show clear signs of use. This can include multiple scratches, scuffs, dents or velcro marks. This may or may not include the original box and accessories.

2– The item has lots of wear and tear including scratches, dents, chips, tarnishing, or velcro marks etc. This may or may not include the original box and accessories.

1– The item has been heavily used with lots of wear and tear. This can include deep scratches, large chips, heavy tarnishing, strong discolouration or velcro marks. This may or may not include the original box and accessories.

What Do Vahlbruch Say?

The PIPELINE is a hand-made reverb pedal reproducing the legendary and beloved spring reverb sound known from vintage tube amps. In a unique circuit it combines the particular advantages of analog and digital signal processing, resulting in a warm, deep and lush sounding reverb pedal with intuitive handling and superior signal to noise ratio. Your direct dry guitar signal is processed fully analog, no digitization! Therefore your straight guitar signal is free of any digital latencies and the full character and dynamics of your guitar are completely preserved. Signal processing before and after reverb generation is also 100% analog. Just the circuit section responsible for reverb calculations is realized digitally. This parallel digital signal is finally mixed together with the dry analog signal.

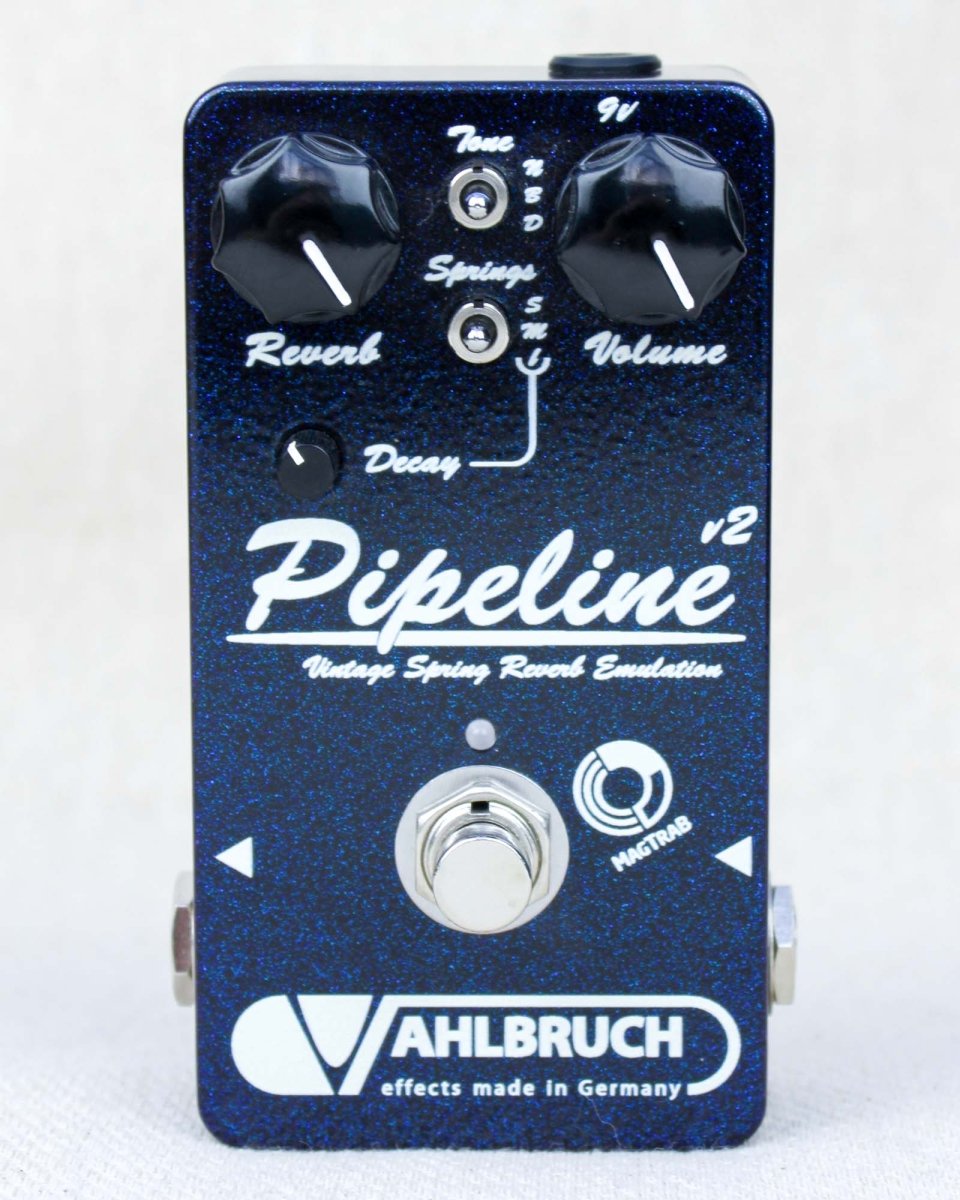

Operating the PIPELINE:
„Reverb" allows you to adjust the reverb intensity. A good starting point to explore the sound possibilities of the pedal is at 2 o'clock.
„Volume" controls the pedal output volume ranging from silence up to +7dB boost. Unity gain is at the middle position ("12 o'clock").

Two additional toggle switches expand the sound possibilities of the pedal:
â€¢ A three-way „Springs" toggle switch alters the number and length of the simulated springs: (S)hort, (M)edium, (L)ong. This results in different decay times, densities and frequency content of the reverb - just like the mechanical models. The "Decay" control allows you to adjust your preferred decay time in the (L)ong setting.
â€¢ A "Tone" toggle switch allows you to change the treble content of the reverb signal. Switching from (N)eutral to (B)right or (D)ark varies the reverb signal presence content - ranging from warm and analog sounding reverbs to more trebly and crisp ones. Your straight guitar signal is of course not affected at all by this tone control!
