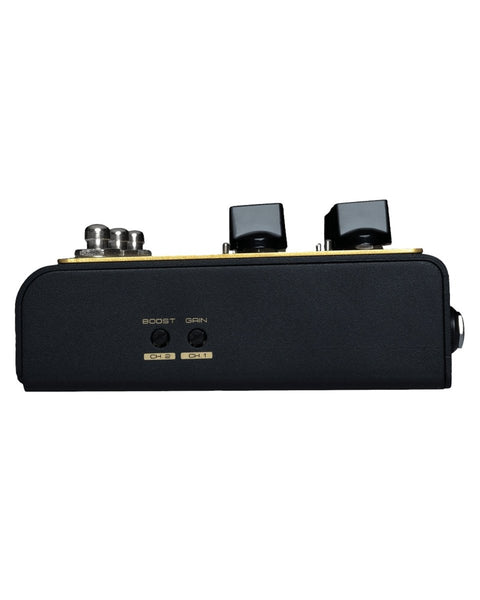

Friedman IR-X Dual Tube Preamp & DI FX Pedal

• Effect: Amp Pedal
• Made in the USA
• All-tube HIGH-VOLTAGE preamp – DI
• 2 x 12AX7 preamp tubes
• Two independent channels + boost
• Channel 1 (Top channel) clean to gritty
• Channel 2 (Bottom channel) high gain drive
• MIDI programmable features
• Effects loop ON/OFF
• Boost Lock
• Power amp simulation with software editable Presence and Thump (per channel)
• Low latency Impulse Response cabinet simulation (bypassable)
• Three position CAB/IR select switch per channel (programmable via software)
• 12 free Friedman IRs or load your own
• Boost Volume and Gain controls (per channel)
• Volume and Gain controls (per channel)
• Full EQ consisting of Bass, Middle, Treble (per channel)
• 3-way Bright switch (Channel 1)
• 2-way Tight switch (Channel 2)
• Three multi-function foot switches
• Ultra-transparent series FX loop (bypassable)
• TRS balanced output
• Headphone output
• MIDI 5 pin standard connector and USB MIDI
• USB software editor – powered by SYNERGY
• Universal 12V Power Supply Included
• 6 Foot USB2.0 A Male to B Male cable Included
• Dimensions (Including Knobs): 5.5” (D) x 6.5” (W) x 2.3 (H)
• Weight: 1.5 lbs.
• Get the famed 'Friedman' amp sound
• Limited 3 year manufacturers warranty to original buyer

The Friedman IR-X dual-channel tube preamp is an entire Friedman rig in a compact pedalboard-friendly package. Powered by two high-voltage 12AX7 preamp tubes, each channel delivers the harmonic richness and touch response of Dave Friedman’s finest designs. DSP IR cabinet/power amp simulation sends a studio-quality mic’d-up tone to your DAW or Front-of-House. The IRX provides easy-to-use controls without complex menus and 100-page manuals.

ALL TUBE FRIEDMAN TONE

IR-X isn't simulating a Friedman tube preamp. It is one. While many available preamp pedals utilize tubes to 'warm up' their digital or solid-state circuit, two glowing hot 12AX7 preamp tubes, running at the properhigh voltage, are this pedal's beating heart. A genuine preamp in every way, IR-X delivers all the tone, response, gain characteristics, and harmonic complexity you expect from a Friedman design.

2 INDEPENDENT CHANNELS WITH BOOST

IR-X boasts two fully independent foot-switchable channels. Like the famed Friedman flagship amps, channel one takes your tone from bluesy, British-voiced cleans to a muscular Plexi-style roar. Engage channel two for the Friedman signature higher-gain voice and all the percussive punch, note clarity and singing sustain that comes with it.

IMPULSE RESPONSE CABINET AND POWER AMP SIMULATION

All great tube amps need a great speaker cabinet, and whether sending your signal straight to the board or silently playing through the onboard headphone output, IR-X gives you a selection of Dave Friedman’s favorite IRs. Select the IR per channel using the 3-way mini toggle switches or load your own quickly and easily via IR-X’s editing software. You can even disengage the onboard IRs entirely to use IR-X’s tube preamp with another IR loader.

IR-X SOFTWARE EDITOR

IR-X gives you astounding tonal control, but its included Friedman IR-X Editor software takes it to a new level. With it, you can tweak each channel’s power amp simulation via the thump and presence controls, load your favorite IRs, activate the Boost Lock feature, select loop ON/OFF and save it all to 128 MIDI presets.

EXPANDED MIDI CONTROL

IR-X is MIDI-capable. Whether pulling up presets with a pedalboard controller or switching channels with the laptop running your entire show, IR-X is ready for the job. It truly is the perfect marriage of modern control and classic tube tone.

FLEXIBLE RIG INTEGRATION

The IR-X’s transparent effects loop allows you to easily integrate your favorite effects with everything from the most straightforward setups to the most complex digitally controlled rigs.

12 FRIEDMAN CABINET IRS INCLUDED.

The IR-X software includes 12 free Friedman IRs to choose from. The first three listed below are the ones which are factory set to the hardware.

6402 57 121
Dave Friedman’s favorite 4×12 cab in bare wood. This is Dave’s primary workshop cab and has been used to voice his amplifiers since the very beginning. It’s fitted with four 6402 Greenback speakers and was captured with an SM57 and R-121 for a nice balance of cut and body.

V30
Stock Friedman 4×12 closed-back cabinet, loaded with four Celestion® Vintage 30 speakers. Captured with a single SM57 and API preamp for a pure, punchy sound.

1980B V30 GB
A rare UK model 4×12 cab from the 80’s rock era. This 1980B “Bass” cabinet is loaded with British Greenback in the top and V30’s in the bottom. This blend of speakers and careful micing creates a huge tone with a massive sound with big bottom and cutting top end.

ALL-IN-ONE

IR-X’s surprisingly compact size turns your pedalboard into your entire rig. Run your favorite dirt pedals and filters directly into the IR-X’s input as you would with any amplifier, and place your favorite time-based effects in the effects loop. Now send all that tone directly to the board with the stunning-sounding benefits of IR technology.

STANDALONE PREAMP

Do you want all the benefits of IR-X’s all-tube preamp section but prefer a live cabinet onstage? No problem. Simply connect the effects loop Send to your time-based effects and then to your amps power section. You can still send the IR output to the console to avoid the hassles of live mic’ing the cabinet (see manual for details).

IR-LOADER

To utilize IR-X’s IR technology independently of the preamp section, just plug your preferred preamp or pedals into its effects loop return. It’s a great way to harness all of its power amp and speaker simulation onstage or in the studio.
