RockBoard MOD 1 V2 TRS, XLR, IEC & DC Patchbay
Special Order Details:
Note *This is a Special Order item that we order quickly and directly from our suppliers after your purchase and ship to you within 4-10 days.*

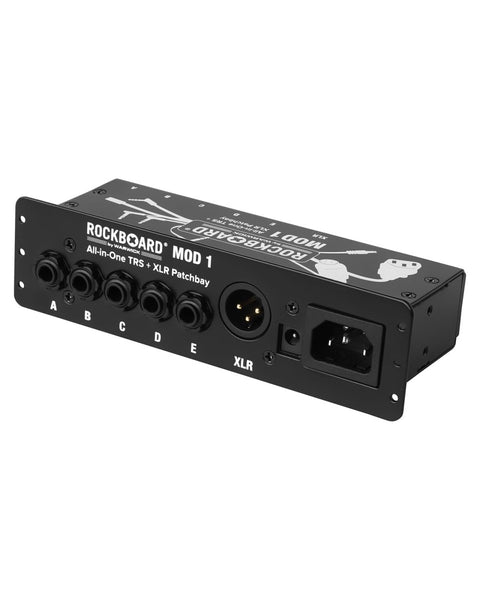

The RockBoard MOD 1 V2 is an all-in-one Patchbay and the ultimate control center for all your connections. With its innovative pass-through design you can use the MOD 1 V2 to position some of your pedals in the front end before the amp (distortion, compressor, etc.) and some in the effects loop (such as reverb, delay) (4 cable method). The XLR-Through connection can be used as a signal output from the pedalboard to a mixing console or PA too.
The RockBoard range of MOD units are designed and built to work in perfect unison with your RockBoard pedal boards, with the specifically designed slots in all RockBoard pedalboards expect the Duo range. Thanks to the removable front panel, it's also possible to use all MOD units with pedalboards from other manufacturers, and can be mounted using the RockBoard Mounting Rack (sold separately).
Details
- Type: Patch Bay
- Made in Germany
- All-in-one patchbay for pedalboards
- Fits MOD slots in RockBoard pedalboards
- Compatible with a wide variety of other pedalboards
- Acts as central access point to your effects setup
- Establishes clean cable paths to and from the pedal board

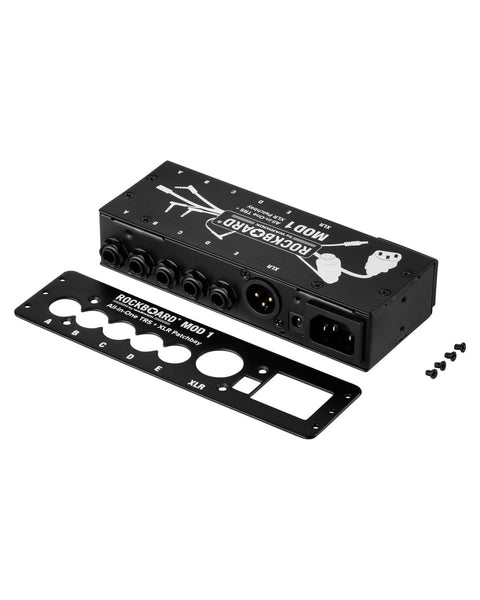

- Detachable front plate for mounting on top or underneath pedalboards
- 5 x 6,3 mm / ¼" TRS thru
- 1 x XLR thru (male front / female back)
- 1 x DC 2,1 x 5,5 mm barrel thru
- 1 x AC IEC thru (male front / female back)

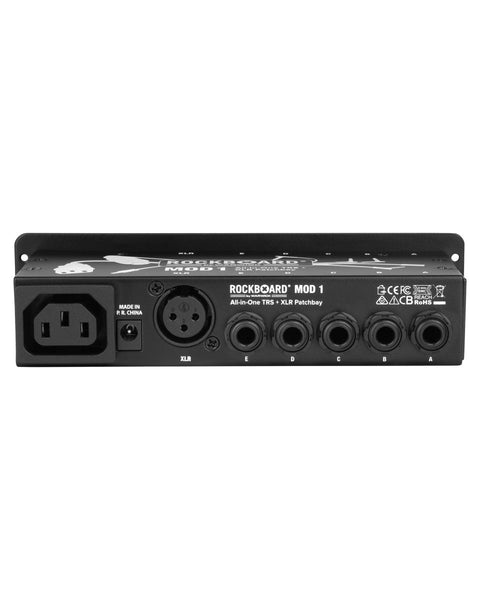

- All connections mirrored on backside
- Dimensions excl. front plate (W x D x H): 160 x 60 x 33 mm / 6 19/64" x 2 23/64" x 1 19/64"
- Dimensions of the front plate (W x H): 175 x 48 mm / 6 57/64" x 1 57/64"
- Weight 450 g / 0.99 lbs
- Incl. mounting screws, counter nuts and TX wrench
What Do Rockboard Say?
The MOD 1 V2 Patchbay is the easiest solution to consolidate ALL connections of a pedalboard in ONE central access point. The setup for any gig is done in seconds!
With its innovative pass-through design, the MOD 1 V2 was specially developed for versatile musicians. You can use the MOD 1 V2 to position some of your pedals in the front end before the amp (distortion, compressor, etc.) and some in the effects loop (such as reverb, delay) (4 cable method). The XLR-Through connection can be used as a signal output from the pedalboard to a mixing console or PA, for example.
Compatible with almost all of our pedalboards with one or more MOD slots (not available on the compact DUO series), the All-In-One Patchbay allows you to organize all required cable connections in one efficient module. This way, you can keep all pedals permanently and neatly wired underneath the board and organize all connections to and from your effects setup in one convenient spot.
The removable front panel makes it possible to use this ingenious module with pedalboards from other manufacturers, e.g. using our 'Mounting Rack'.
