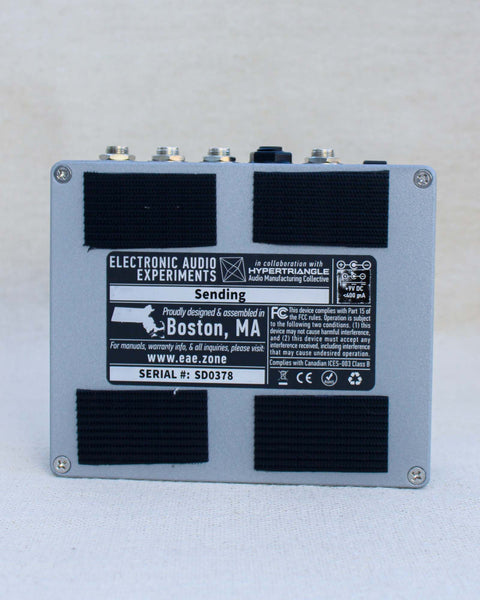

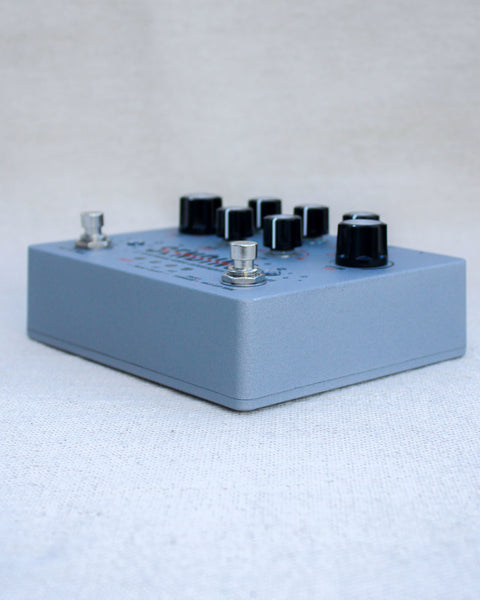

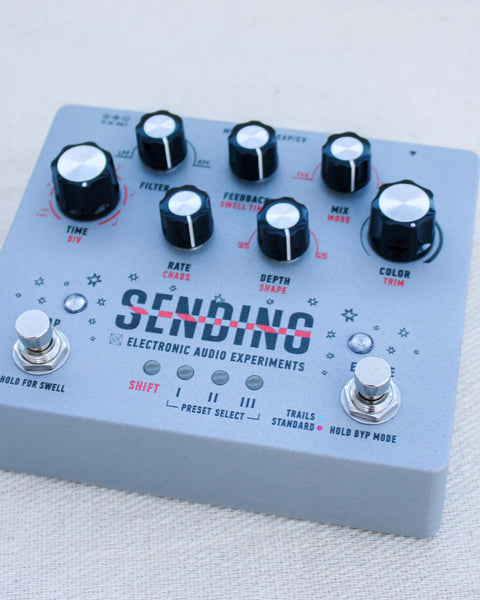

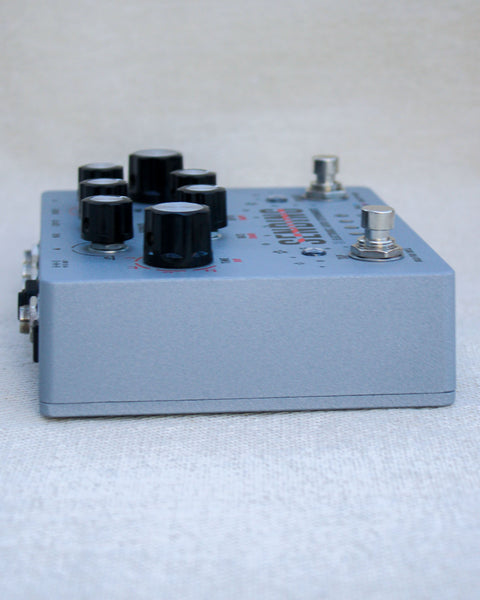

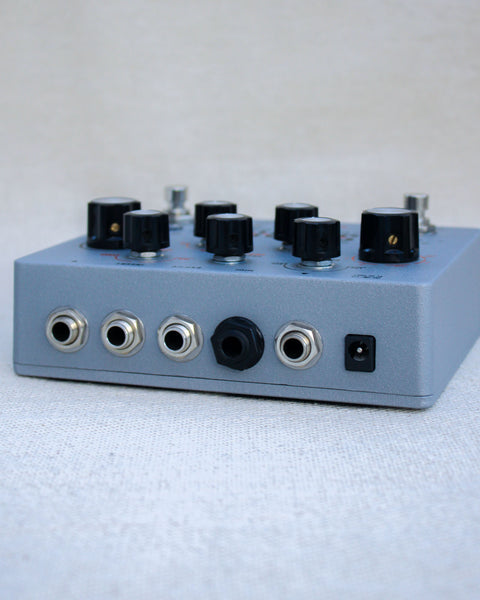

Electronic Audio Experiments Sending Analog Delay FX Pedal [Used]

• USED Pedal
• Grade 4 - Excellent
• Original box and stickers
• A unique discrete preamplifier for subtle enhancement or full-range saturation that is automatically balanced for optimal output levels at all settings.
• Trails bypass mode that allows the preamp to be used as an always-on drive.
• Dual-mode Filter control that changes the tone of the delay repeats.
• Advanced analog filtering for low noise and high bandwidth on the delay line.
• Comprehensive digital control of every function using a powerful 32-bit processor system that seamlessly integrates with the analog signal path.
• Tap tempo with subdivisions and a hold mode for feedback swells.
• Delay time LFO engine with sine, square, and triangle waves plus a unique Chaos function that modulates the delay time using a truly random Lorenz attractor.
• Insert loop to apply external effects to delay repeats within the feedback path.
• Save and recall up to 32 presets: 3 via the front panel, the rest via MIDI.
• CV/Expression input that can be mapped to one or multiple controls.
• TRS MIDI input for control changes, preset selection, and clocking.
• Web-enabled firmware updates via the MIDI jack.
• Bypass switching: Electronic bypass with buffered or Trails modes. Trails mode passes signal through the preamplifier.
• Input impedance @ 1kHz: 1MΩ
• Output impedance @ 1kHz: <1KΩ
• Power: 9VDC, 2.1mm center negative barrel.
• Current draw is 350-380mA depending on the Time setting.

We recommend a regulated, isolated power supply rated for 400 mA minimum. The DC input is protected against reverse polarity and over-voltage up to 24V. Our pedals do not accept batteries.
